Where did 400 MiB go?

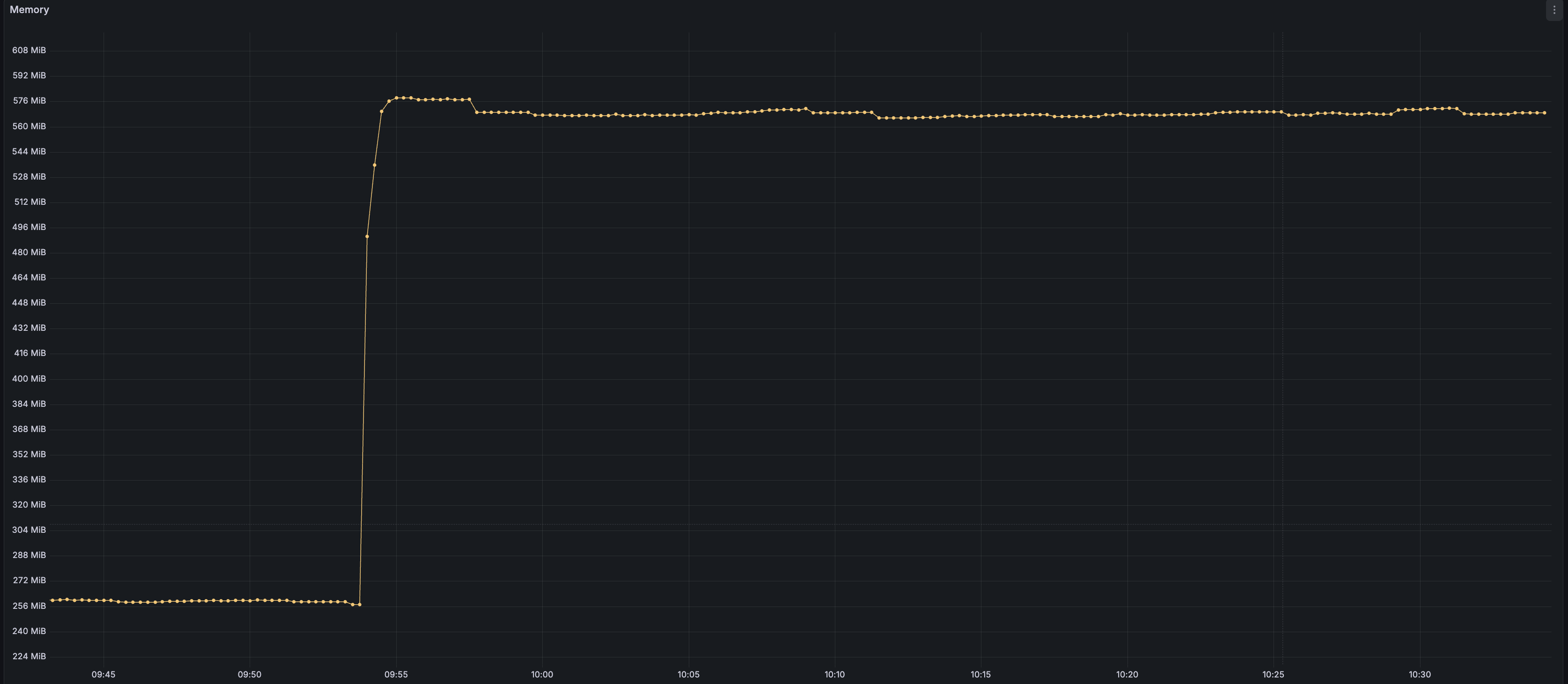

While doing some routine upgrades today, I restarted all 60+ pods of a Node.js websocket app. Every pod came back sitting at ~330 MiB of memory, but one of them, after a few minutes, spiked from ~330 MiB to 500, then to 640 and stayed there.

This wasn’t new to me. I’ve been staring at this same pattern for a month and a half, but never got the chance to actually investigate it. V8’s garbage collection was my first bet, but since this is an important workload for the company, I didn’t want to commit to any changes before confirming the root cause.

Tonight, I got the perfect scenario to investigate.

--- PID 2043462 ---
/usr/bin/tini -- /entrypoint.sh
VmRSS:      1152 kB
--- PID 2043476 ---
node dist/main
VmRSS:    679936 kB
--- PID 2043573 ---
/app/gows --socket /tmp/gows.sock
VmRSS:     90884 kB

• Gows is the websocket proxy (written in Go) - 89 MiB.
• And node dist/main - the actual Node.js application - at 680 MiB.

I ran the same commands on a healthy pod and the delta was an impressive 412 MiB in the Node.js process.

All the growth was in private anonymous memory. We had no file-backed growth and no shared memory changes. The shared libraries were identical - same binary and .so files loaded.

At this point I was fairly sure it was V8 heap. Made sense with the step-change pattern too - each burst of fetches creates a bunch of objects, V8 expands its old generation, and it never gives those pages back to the OS.

Well, I was wrong. Or at least, not entirely right.

I needed to see what V8 actually thought about its own memory. I used -USR1 and printed process.memoryUsage().

The sick pod:

{
  "rss": 697303040,
  "heapTotal": 135147520,
  "heapUsed": 126842024,
  "external": 25004037,
  "arrayBuffers": 33762595
}

The healthy pod:

{
  "rss": 281395200,
  "heapTotal": 113913856,
  "heapUsed": 104892656,
  "external": 23737321,
  "arrayBuffers": 32256735
}

V8 heap difference: 20 MiB. RSS difference: 397 MiB. The V8 heap was fine. JavaScript had no idea there was a problem. But the kernel saw 665 MiB of resident memory, and V8 could only account for ~180 MiB of it (heap + external + array buffers). 377 MiB existed outside of V8 entirely.

Ok, if it’s not V8 heap, not external buffers, not array buffers, then where is it? The next obvious candidate are glibc’s arenas. So I counted anonymous memory mappings in /proc/pid/smaps from both pods:

Sick:    1803 mappings
Healthy:  580 mappings

1803 vs 580. I shipped MALLOC_ARENA_MAX=2 to limit glibc to 2 arenas.

It didn’t work. A pod got hammered, spiked to 576 MiB, and stayed there. I was missing something.

So I went back in. This time I checked the size distribution of those anonymous mappings on the stuck pod:

<64KB:   13
64KB-1MB: 1461
>1MB:    25

Almost all in the 64KB-1MB range. I listed the actual regions:

256KB 1e20080000-1e200c0000 rw-p 00000000 00:00 0
256KB 2efb440000-2efb480000 rw-p 00000000 00:00 0
256KB 3c708c0000-3c70900000 rw-p 00000000 00:00 0
256KB 48d9340000-48d9380000 rw-p 00000000 00:00 0
256KB 5a3a3c0000-5a3a400000 rw-p 00000000 00:00 0
...

All 256 KB. 1461 separate memory regions, all exactly the same size.

This couldn’t be glibc. With MALLOC_ARENA_MAX=2, there were only 2 arenas, and glibc grabs memory in much larger chunks anyway. So what allocates thousands of identically-sized 256 KB regions via mmap()? The only component in this process that manages its own memory like this, bypassing malloc() entirely, is V8. 1461 * 256 KB ~ 365 MiB of heap pages sitting in memory.

But process.memoryUsage() had reported heapTotal at only 129 MiB. How does V8 have 365 MiB of mmap’d pages but only report 129 MiB?

process.memoryUsage() reports heapUsed, which are the live objects V8 currently knows is in use. On the sick pod, 121 MiB. On the healthy one, 100 MiB. So I concluded V8 was fine and the problem was somewhere else.

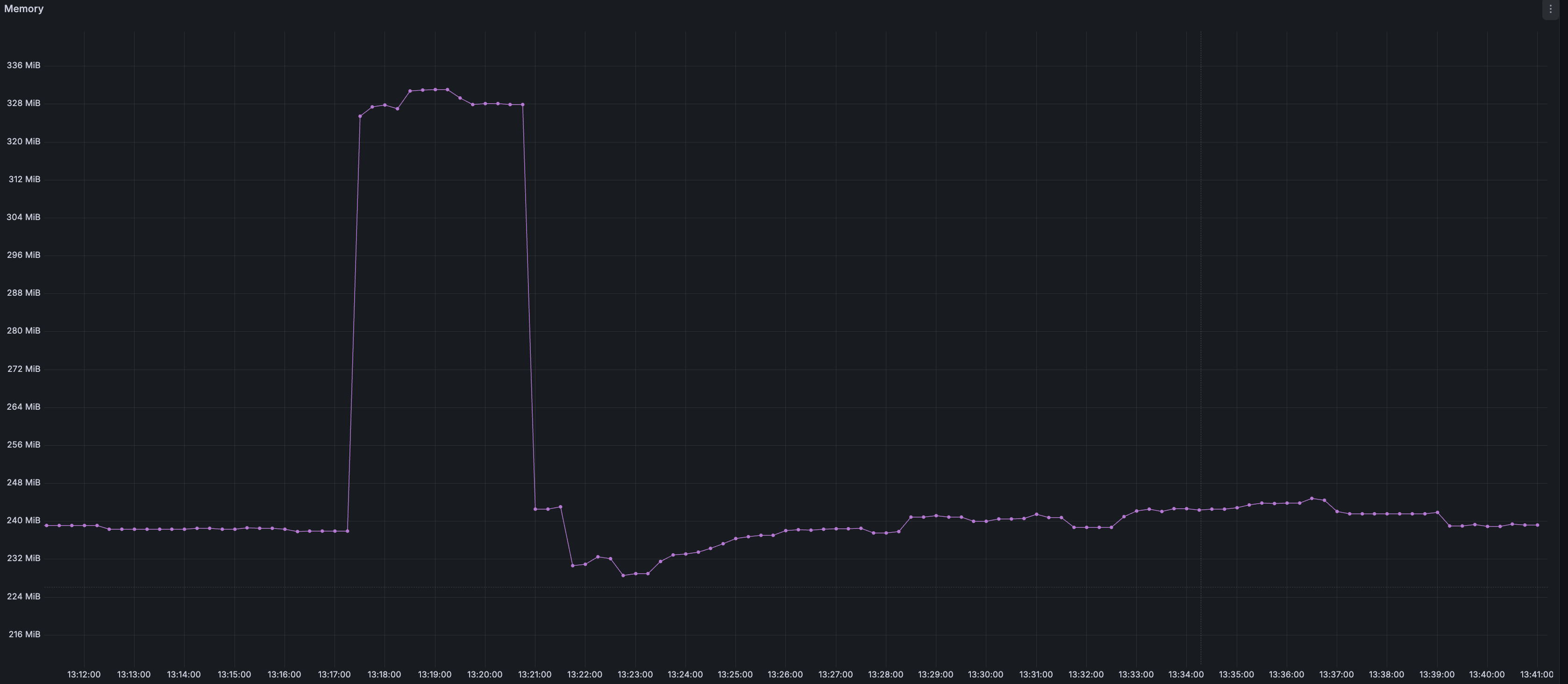

I used the Chrome DevTools Protocol to force a full garbage collection on the stuck pod, then checked memory:

Before GC: RSS = 568 MiB, heapTotal = 129 MiB
After GC:  RSS = 316 MiB, heapTotal = 107 MiB

252 MiB gone.

So the V8 theory was right all along. But was glibc arena fragmentation also real, or had I been chasing the wrong thing entirely?

I properly tested both this time.

The first try was with –max-old-space-size=256 only. This caps V8’s old generation heap at 256 MiB, forcing it to actually collect garbage instead of sitting on it forever. I hammered the pod. Memory spiked to 619 MiB during the burst, then dropped to 350 MiB. Better. But 350 is still above the ~250 MiB baseline.

Then I added MALLOC_ARENA_MAX=2 back. This time it dropped to 280 MiB.
